Fully Automatic Heat Shrink Tube & Waterproof Seal Insertion Terminal Crimping Machine

(Wire Harness Processing Equipment)
Model: ZOKO-068S
Fully Automatic Double-End Terminal Crimping Machine with Waterproof Seal Insertion and Heat Shrink Tube Processing

This advanced fully automatic wire processing machine integrates wire cutting, stripping, terminal crimping, waterproof seal (plug) insertion, heat shrink tube cutting, insertion, precise positioning, and heat shrinking into one high-efficiency system. Designed for modern wire harness production, it delivers consistent quality, high output, and significant labor savings for automotive, industrial, and electronic applications.

Core Function Features:

• Fully automatic wire cutting and dual-end stripping
• One-end waterproof seal insertion + terminal crimping
• Opposite-end terminal crimping + automatic heat shrink tube cutting, insertion, precise positioning, and heat shrinking

Key Features & Advantages

1. Powerful Multi-Station Integration

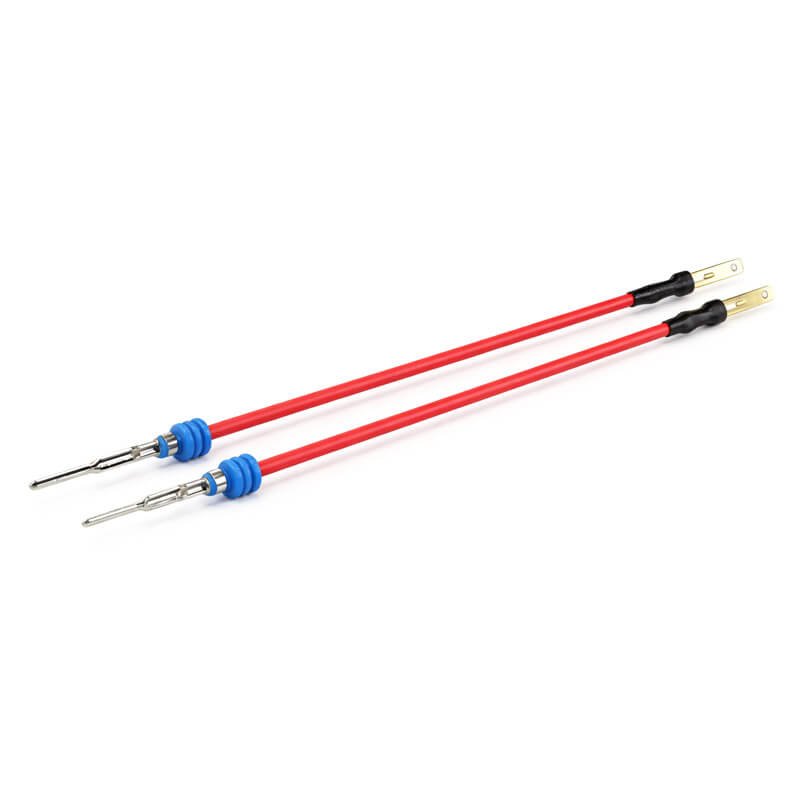

A-end automatically inserts the waterproof seal and crimps the terminal.
B-end crimps the terminal, then automatically cuts, inserts, positions, and heat-shrinks the tube — all completed in a single continuous process.

2. High Heat Shrink Tube Positioning Accuracy
Heat shrink tube positioning accuracy reaches within ±0.5 mm, meeting the strict requirements of high-end customers and ensuring uniform, professional results.

3. Easy Waterproof Seal Changeover
Switching different waterproof seals requires only replacement of the feeding track and fixtures — fast, simple, and highly flexible.

4. High Equipment Utilization Rate
Operators can easily switch between heat shrink tube function, waterproof seal function, or any single-end processing mode. One machine adapts to multiple product requirements with minimal downtime.

5. Significant Labor Cost Reduction
Processes that previously required multiple operators and workstations (heat shrink tube cutting, insertion, positioning, heating, and waterproof seal insertion) are now completed by a single machine. This dramatically reduces labor intensity and overall production costs while improving consistency and yield.Ideal for manufacturers seeking a reliable, high-precision, multi-functional solution for double-end terminal wires with waterproof sealing and heat shrink protection. Contact us today for customization options, technical specifications, or a live demonstration.
