Flexible Automotive Wire Harness Multi-Housing Terminal Crimping and Connector Insertion Machine | Tray Feeder | EVT-683
| Model: | EVT-683 |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp;
Dual-End Terminal Crimping;
Multi Housing Insertion;
|
EVT-683 Flexible Automotive Wire Harness Processing Center
– Multi-Connector Insertion with Interchangeable Tray System
— EVT-683 Flexible Automotive Wire Harness Processing Center(Interchangeable Tray / Carrier System)
Model: EVT-683 (Fully Automatic Automotive Wire Harness Processing Center)
The EVT-683 is a highly flexible fully automatic automotive wire harness processing center for dual-end terminal crimping and multi-housing connector insertion. Featuring an interchangeable tray (carrier) feeding system, this complex automotive wire harness intelligent processing center supports up to 20 different housings and enables high-mix multi-variant production. Ideal for flexible manufacturing of complex multi-connector automotive wire harnesses with quick product changeover.
The EVT-683 Automotive Wire Harness Intelligent Processing Center integrates wire feeding, cutting, stripping, terminal crimping, waterproof seal insertion, and automatic housing insertion into one complete process. With excellent flexible adaptation capability, simply changing simple fixtures allows compatibility with multiple PIN-count connector housings and various wire specifications. Process recipes can be stored and recalled with one click for fast changeover. The machine perfectly balances high-volume production and high-mix low-volume order requirements for complex automotive wire harness assembly.
Key Features of the EVT-683 Flexible Automotive Wire Harness Processing Center
- Supports up to 20 different housings / connectors / sockets.
- Simultaneous crimping of 2–10 different terminals (up to 10 stations customizable).
- Compatible with 1–3 types of waterproof seals (more available upon customization).
- Stores up to 20 different wires.
- Highly flexible manufacturing — perfect for multi-variant and medium-to-low volume complex wire harness production.
- One-stop intelligent processing center for new energy vehicle wire harnesses.
- Full AI vision inspection — quality meets OEM standards.
- Flexible multi-category mass production, cost reduction and efficiency improvement for wire harness factories.
Technical Specifications EVT-683 Automotive Wire Harness Intelligent Processing Center
|
Item
|
Specification
|
|---|---|
|
Model
|
EVT-683
|
|
Footprint & Weight
|
5400 mm (W) × 4200 mm (D), approx. 4000 kg
|
|
Applicable Wire Size
|
AWG #16 – #24
|
|
Wire Feeding Method
|
Wire feed rollers
|
|
Processing Length
|
200 mm – 3500 mm
|
|
Stripping Length
|
Both ends 1.0 mm – 18 mm
|
|

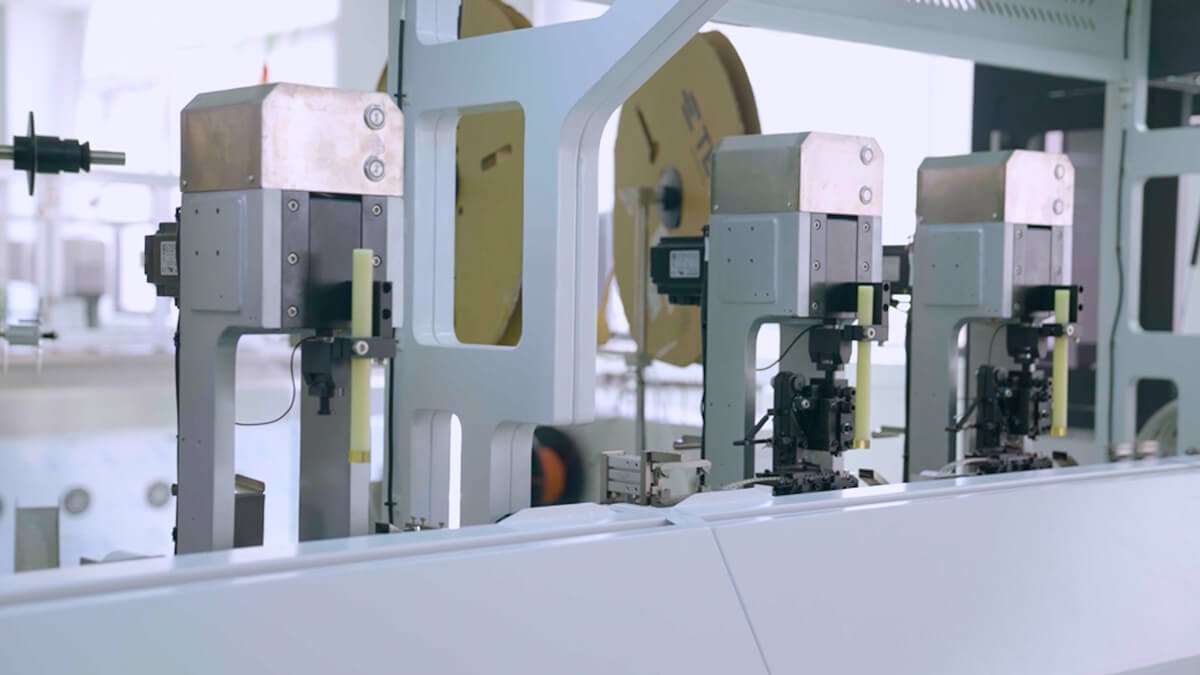

Crimping Capacity
|
2.0T servo crimping presses, 6 stations (customizable up to 10)
|
|
Applicable Terminals
|
JAM, OPT, JST, Molex side-feed terminals (JST/Molex require applicator base & punch change)
|
|
Applicable Housing Size
|
Max. 58W × 20D × 15H mm
|
|
Number of Housings
|
Up to 20 different housings
|
|
Production Capacity
|
3.5 sec/pcs (at 500 mm cutting length)
|
|
Stripping Method
|
Positive & reverse lead screw
|
|
Transfer Method
|
Closed-loop stepper shuttle (high positioning accuracy)
|
|
Assembly Mode
|
Cross assembly
|
|
Quality Inspection
|
Blade-to-copper detection, copper core end-face vision, terminal appearance vision, terminal presence, insertion depth, stripping quality, wire presence, low air pressure detection, etc.
|
|

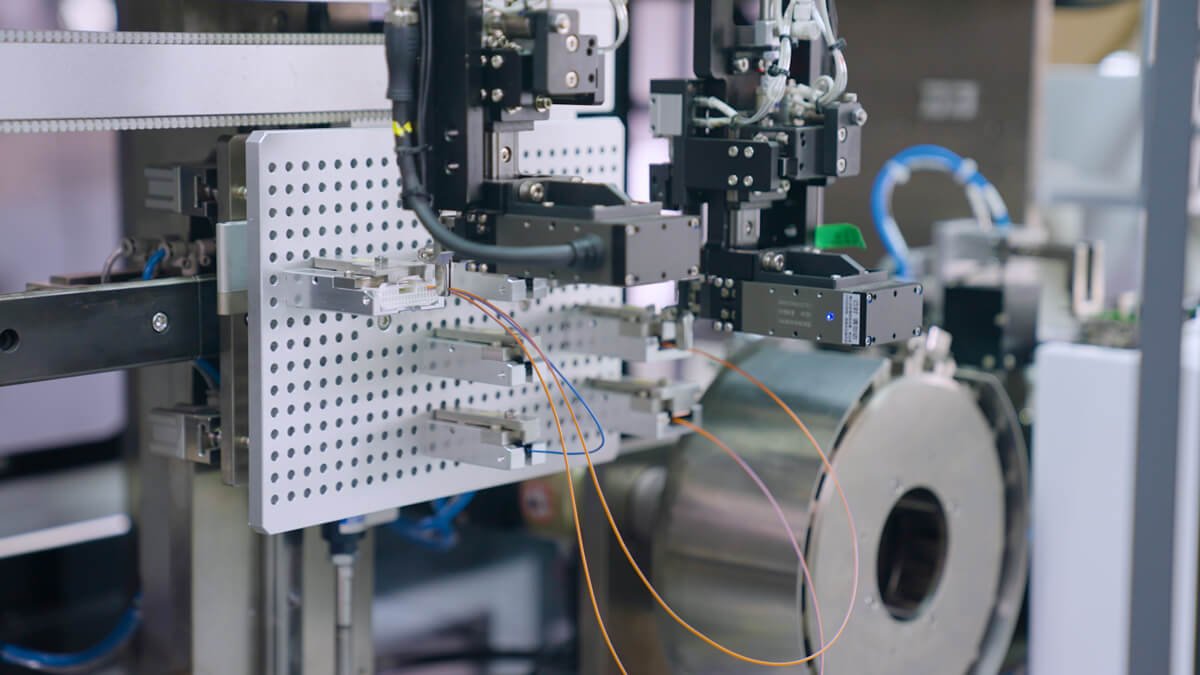

Housing Feeding System
|
Interchangeable tray / carrier feeder (fast loading, supports multiple housings, customizable)
|
|
Work Stations
|
7 stations + 4 shuttle groups
|
|
Air Pressure
|
0.5 – 0.7 MPa (dry & clean)
|
|
Power Supply
|
3-phase AC 380V, 50/60 Hz
|
|
Wire Payoff Axes
|
12 axes (customizable to 24 axes)
|
