Automatic multi-core power cable stripping machine, wire stripper
| Model: | JX-880H |
|---|---|
| Brand: | KingXoul |
| Function: | Cut;
Strip; Multi-core Processing |
Automatic multi-core power cable stripping machine, wire stripper
KINGXOUL affordable automatic multi-core power cable stripping machine and wire stripper,Help Your Business Reduce Labor Cost and Increase Production Efficiency.Create More Value For You!
The JX-880H automatic multi-core power cable stripping machine and wire stripper for cable cutting and wire stripping – meets this criteria with solid, powerful technology.
JX-880H cut and strip machine process power cable, cuts and strips outer jacket layer and inner covers. Outer diameter 2-10mm is in this machine processing range. And 2-5 inner cables are ok, flat cable is possible.
Features
It is manufactured subject to round muti-core power cables, flat jacket cables and some other special cables. It can strip both outer layers and inner insulation. Cutting the cable into designated length, and strip as requirement. It won’t damage the insulation which stay on wire harness. Increase production hugely and increase wire harness quality by using our machine. The knife holder is movable, cutting blades and stripping blades are separately used. Cutting mouth is even, stripping quality is stable. And belt feeding system make it on more preciseness. Having 100 numbers saving programs. We can take out the program at any time when need it.

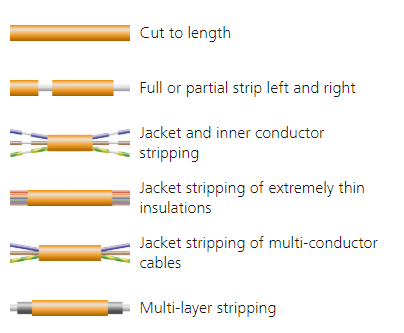

wire cable cut and strip
Special wire processing capabilities can be customized by your requirements.
In addition, cutting, stripping, double crimp, seal loading, sleeve insertion, ferrule crimping, strand twisting and tinning can be processed efficiently. Various types of stripping and crimping machines can meet your requirements and contribute to a high level of productivity.
| Model No.: | JX-880H |
|---|---|
| Name: | Automatic multi-core power cable stripping machine |
| Power Required: | AC220V/110V 50/60Hz |
| Function: | Cable Cutting, Two Heads or Single Head Stripping, |
| Production Capacity: | 500-600pcs/h (Length: 500mm） |
| Round wire diameter:: | 2-10mm(inner cables:1-5pcs) (bigger or smaller cables, we offer customized machine) |
| Cutting range: | 0.5mm-9999.9mm, Middle left cover more than 120mm |
| Outer cover strip capacity: | Front 200mm, Back 150mm |
| Air Required: | 0.4~0.6 Mpa (4 – 6 Kg), Must be dry and clean air |
| Blades: | 4pcs |
| Size: | 610*520*1220mm |
| Net Weight: | 128 kg |
| Main Featured: | Drive mode: Belt feeding, 8-wheel drive, solo drive box driving |
Other Notes:
| xx model 1 | xx model 2 | xx model 3 | |
|---|---|---|---|
| Cutting to length: | |||
| Full stripping: | |||
| Half stripping: | |||
| Multi-step stripping: | |||
| Center stripping / Intermediate slitting: |
|||
| Multi-conductor cable processing: | |||
| Core processing: | |||
| Double sheath cable processing: | |||
| Flat cable processing: | |||
| Cutting pulled strands / Precision cut: |
|||
| Hot stamp marking: | |||
| Inkjet marking: | |||
| Coiling / Binding | |||
| Sequence processing | |||
| Wire feed (Roller/Belt) | |||
| Wire deposit system | |||
| Pulling / Dereeling prefeeder | |||
| Batch separation | |||
| Twisting / Tinning | |||
| Seal insertion | |||
| Split cycle for closed barrels | |||
| Double crimping | |||
| Sleeve insertion | |||
| Double sheath / Coaxial and triaxial cables |
|||
| Ferrule crimping | |||
| MIL crimping | |||
