EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine | Automatic Wire Terminal Crimping & Housing Insertion Equipment

Model: EVT-706D (Wire Harness Processing Equipment)

The EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine is a high-performance wire processing solution designed for efficient dual-end wire harness production. This fully automatic hybrid IDC piercing and terminal crimping machine performs single-end IDC piercing (insulation displacement connection) on one side while simultaneously crimping two different terminals on the other end. It supports flexible wire lengths, precise stripping, and reliable crimping for various applications in automotive, electronics, and appliance wire harness manufacturing. With advanced servo control, multiple quality detection systems, and high productivity, the EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine significantly reduces labor costs and improves production consistency.

Key Features of the EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine

• Fully automatic hybrid operation: single-end IDC piercing + dual different terminal crimping on the opposite end
• Supports different terminals on the crimping side for maximum flexibility
• High-precision servo-driven IDC piercing and terminal crimping

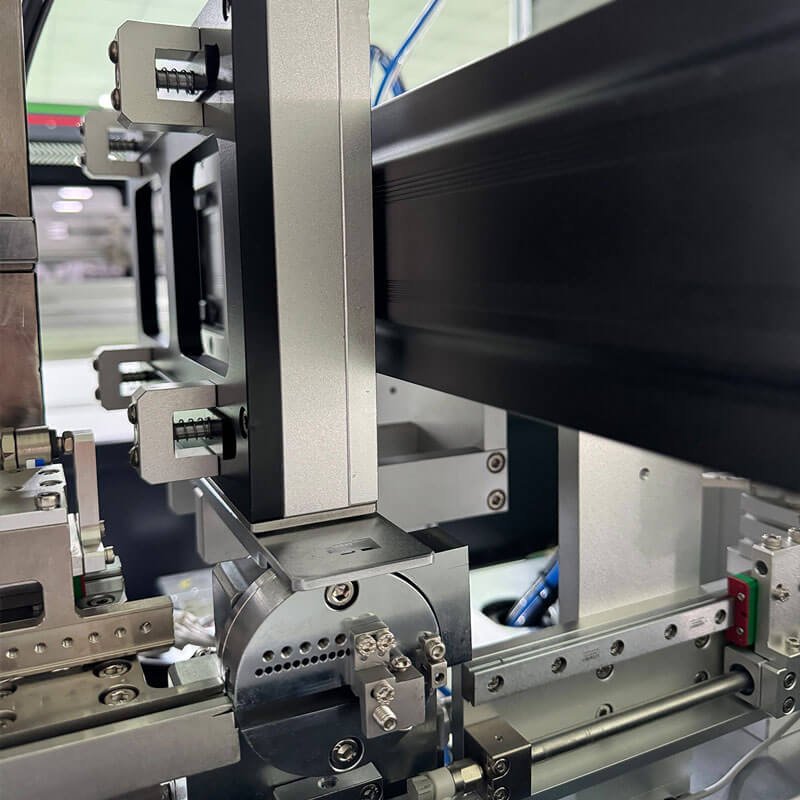

• Belt wire feeding system for stable and accurate wire transport
• Positive and reverse lead screw stripping for clean and consistent results
• Customizable quality detection functions according to customer requirements
• High productivity for wires under 1 meter
• Compact design with robust construction suitable for continuous industrial use
• Ideal for wire harness manufacturing requiring IDC connectors and mixed terminal types

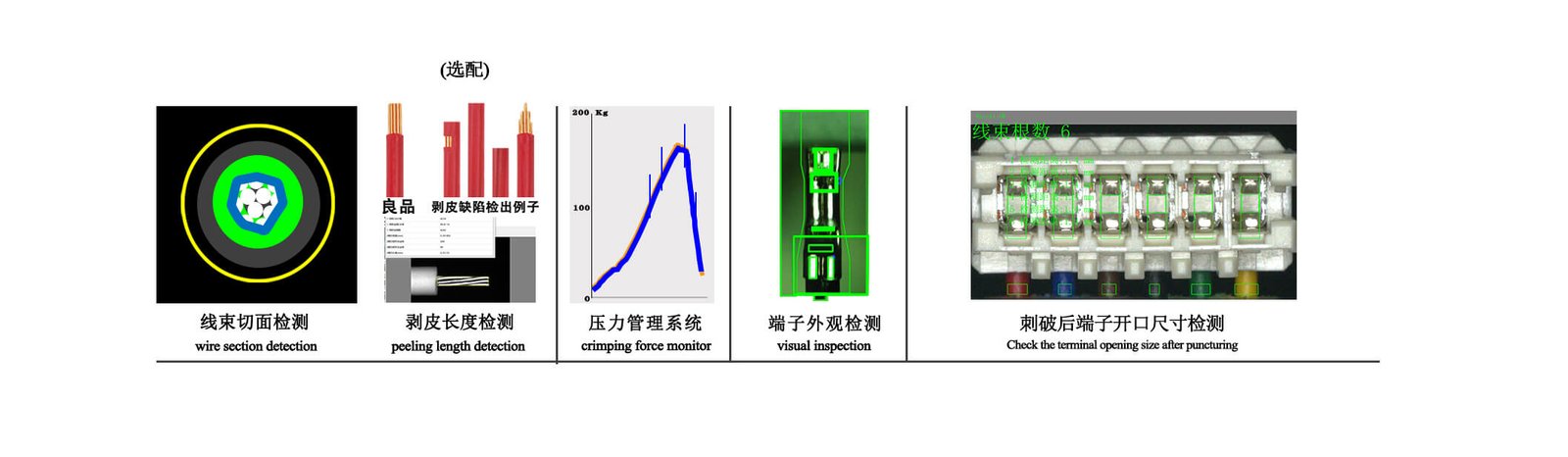

Customizable Quality Detection System of EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine

The EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine for Ultra-Short Wires is the ideal automated solution for manufacturers seeking high-speed, high-precision Dual-End IDC Connector and Terminal Crimping Machine.

Technical Parameters of the EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine

Parameter	Specification
Model	EVT-706D
Footprint & Weight	2100 mm × 1300 mm, approx. 1800 kg
Applicable Wire Size	0.3 – 1.5 mm²
Wire Feeding Method	Belt feeding
Wire Processing Length	250 – 2500 mm
Stripping Length	Both ends 1.0 – 10 mm
Crimping Capacity	2 × 1.5 T
Production Capacity	Approx. 4 seconds per piece (wires under 1 m)
Stripping Method	Positive & reverse lead screw
IDC Piercing Method	Equipped with 2 × 1.5 T servo presses for single-wire piercing
Piercing Motor	400 W
Assembly Method	Single-end IDC piercing + opposite-end terminal crimping
Quality Detection Functions	Pressure monitor, copper wire cross-section detection, terminal appearance detection, IDC piercing appearance detection, missing terminal detection, missing wire detection, etc.
Air Pressure Requirement	Clean dry air 0.5 – 0.7 MPa
Power Supply	220 V / 50 Hz

The EVT-706D fully automatic hybrid IDC insulation displacement and terminal crimping machine stands out as one of the most flexible solutions on the market for these processes. Whether you require high-speed production of multi-colored wire harnesses or need to rapidly switch between different specifications of IDC housings, sockets, or connectors, this fully automatic hybrid system ensures consistent precision and high-efficiency performance.

EVT-706D Fully Automatic Hybrid IDC Piercing & Terminal Crimping Machine Demo
