Semi-Automatic Manual Wire Stripping and Crimping Machine
| Model: | JX-M701 |
|---|---|
| Brand: | KingXoul |
| Function: | Cable Cut; Wire Strip; Crimping; |
| Types of Wire | Teflon wire, PVC wire, Silicone wire, Large gauge wire, Small gauge wire, |
| Price ; | Contact Us Get Last Price |

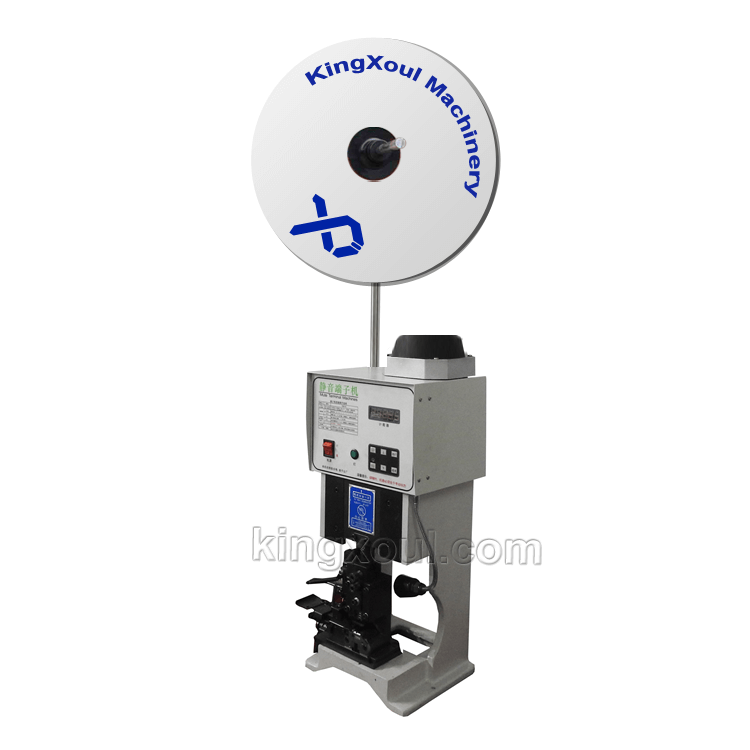

Semi-Automatic Manual Wire Stripping and Crimping Machine
JX-M701 semi-automatic manual wire stripping and crimping machine, with single end processing function of wire stripping and crimping, designed to increase production efficiency in electronics wiring harness processing and assembly field.
High Precision Equipped CFM （Customized）
JX-M701 semi-automatic manual wire stripping and crimping machine for one sided stripping and crimping – meets this criteria with solid, powerful technology. can be customized equipped with CFM Crimp force monitor that check the pressure of crimping terminal.
Other wire processing capabilities can be customized by your requirements.
In addition, cutting, stripping, double crimp, seal loading, sleeve insertion, ferrule crimping, strand twisting and tinning can be processed efficiently. Various types of stripping and crimping machines can meet your requirements and contribute to a high level of productivity.
Manual Wire Stripping and Crimping Machine Capability:
- Simple design that is very easy to use.
- Extremely cost effective
- High quality results
Semi-Automatic Wire Stripping and Crimping Machine features:

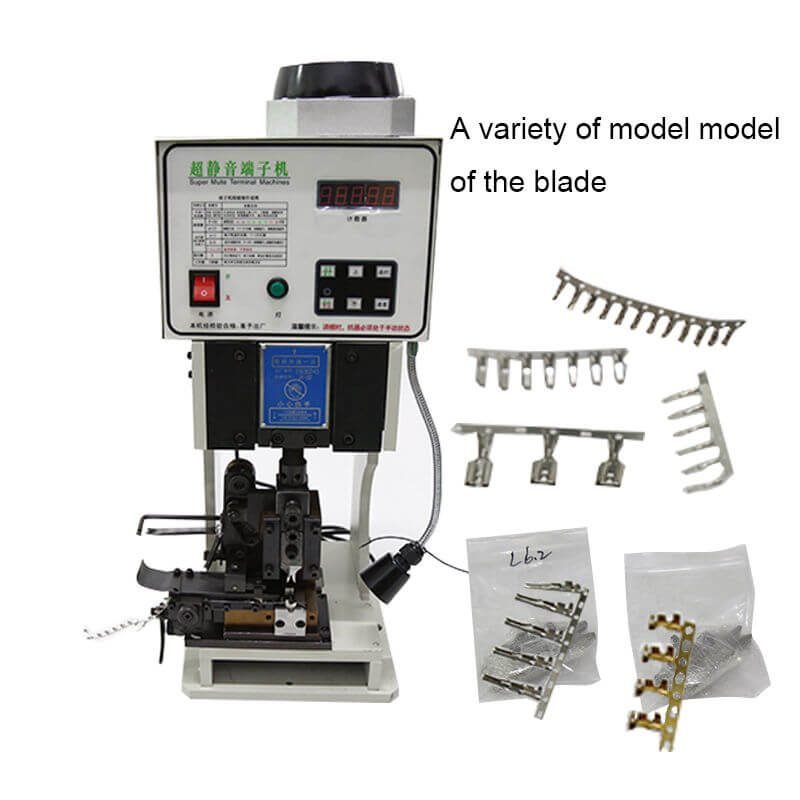

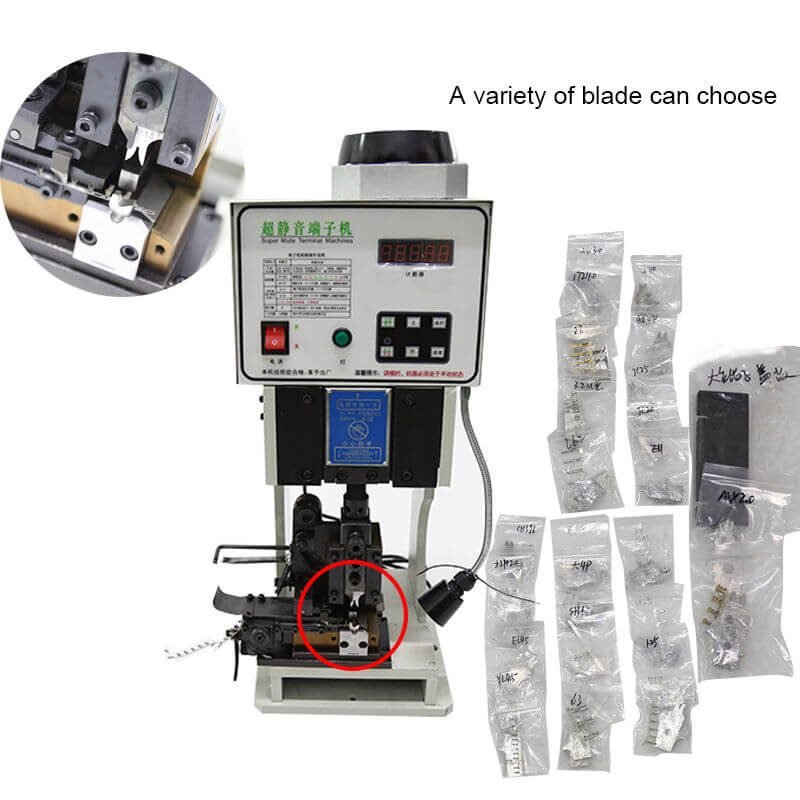

It accepts most side- and rear-feed, pneumatic and mechanical feed mini-style crimping applicators.
- Open barrel
- Closed barrel
- Pre-insulated
- Mylar Tape
Semi-Automatic Manual Wire Stripping and Crimping Machine working video:
| Model No.: | JX-M701 |
|---|---|
| Name: | Semi-Automatic Manual Stripping and Crimping Machine |
| Power Required: | AC220V/50HZ |
| Function: | Cable Cutting, Stripping, Crimping |
| Production Capacity: | Manual control |
| Applicable cable range: | AWG12-28#(Larger or smaller gauge wires, special requirement can be customized) |
| Shut Height: | 135.78 mm (5.346”) |
| Stripping length: | 1.5-10mm(special requirement can be customized) |
| Crimping force: | 1.5T / 2.0 T / 4.0T / 6T |
| Activation | Foot Pedal |
| Noise Level : | <70 dB (A) |
| Size: | 245 * 245 * 620 mm |
| Net Weight: | 55KG |
| Main Featured: |
| xx model 1 | xx model 2 | xx model 3 | |
|---|---|---|---|
| Cutting to length: | |||
| Full stripping: | |||
| Half stripping: | |||
| Multi-step stripping: | |||
| Center stripping / Intermediate slitting: |
|||
| Multi-conductor cable processing: | |||
| Core processing: | |||
| Double sheath cable processing: | |||
| Flat cable processing: | |||
| Cutting pulled strands / Precision cut: |
|||
| Hot stamp marking: | |||
| Inkjet marking: | |||
| Coiling / Binding | |||
| Sequence processing | |||
| Wire feed (Roller/Belt) | |||
| Wire deposit system | |||
| Pulling / Dereeling prefeeder | |||
| Batch separation | |||
| Twisting / Tinning | |||
| Seal insertion | |||
| Split cycle for closed barrels | |||
| Double crimping | |||
| Sleeve insertion | |||
| Double sheath / Coaxial and triaxial cables |
|||
| Ferrule crimping | |||
| MIL crimping | |||
