Fully Automatic Dual Wire Combination Terminal Crimping Machine with Heat Shrink Tube ZOKO-038CF
| Model: | ZOKO-038CF |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic 2 wires into one Terminal Crimping ; Heat-Shrink-Tube Insertion |
Fully Automatic Dual Wire Combination Terminal Crimping Machine with Heat Shrink Tube | Model ZOKO-038CF
(Wire Harness Processing Equipment)

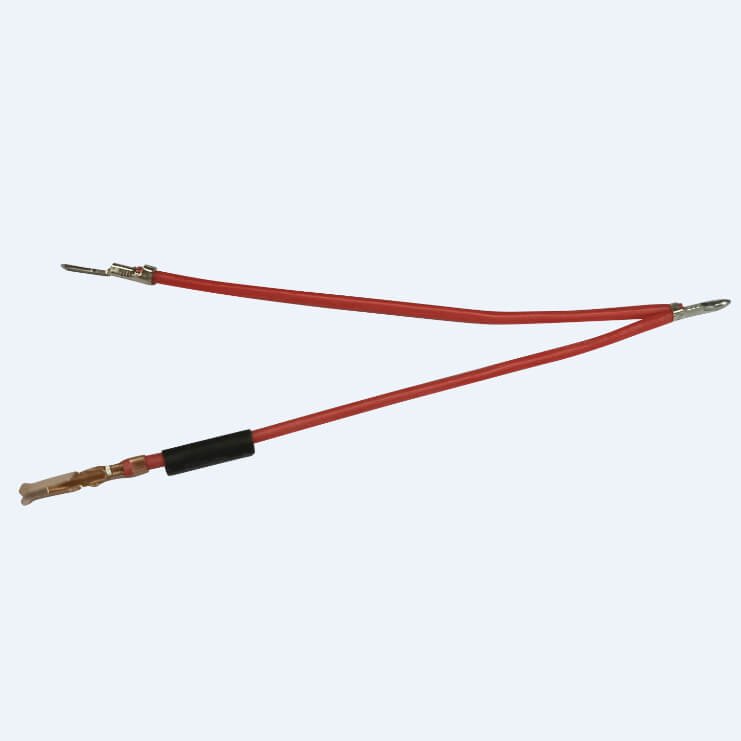

The ZOKO-038CF is a high-efficiency fully automatic dual wire combination terminal crimping machine designed for precise wire harness production. It simultaneously processes two wires by cutting, stripping, and combining one end of both wires into a single terminal (two wires into one terminal), while independently crimping a terminal on each of the opposite ends. One of the wires is automatically fitted with a heat shrink tube for enhanced insulation and protection.
Ideal for automotive, electronics, home appliance, and industrial wire harness applications, this machine delivers stable performance, high productivity, and consistent quality with minimal operator intervention.
Key Features
- Fully automatic cutting, stripping, dual-wire joint crimping, individual terminal crimping, and heat shrink tube insertion
- High-speed production up to 2300 pcs/hour
- Wide wire range compatibility (AWG24–AWG16)
- Ultra-quiet 2.0T cast clutch crimping for reliable and low-noise operation
- Precision cutting and flexible length handling
Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model
|
ZOKO-038CF
|
|
Capacity
|
2300 pcs/hour (within 300 mm length)
|
|
Function
|
Two wires joint-crimped on one end into the same terminal; individual terminals on the other ends; heat shrink tube on one wire
|
|
Wire Range
|
AWG24# – AWG16#
|
|
Cutting Length
|
65 – 9999 mm (long wire conveyor belt required for lengths over 800 mm)
|
|
Cutting Accuracy
|
≤ 0.5 mm + cutting length × 0.5%
|
|
Crimping Capacity
|
Standard 2.0 T (cast ultra-quiet clutch terminal machine)
|
|
Power Supply
|
AC 220V 50/60 Hz 20A
|
|
Machine Dimensions
|
L1450 × W750 × H1860 mm
|
This fully automatic two-wire joint terminal crimping and heat shrink tube machine offers an excellent balance of speed, precision, and versatility, making it a reliable solution for modern wire harness manufacturing lines.
Fully Automatic Housing Insertion and Terminal Crimping Machine working video:
|
Parameter
|
Specification
|
|---|---|
|
Model
|
ZOKO-038CF
|
|
Capacity
|
2300 pcs/hour (within 300 mm length)
|
|
Function
|
Two wires joint-crimped on one end into the same terminal; individual terminals on the other ends; heat shrink tube on one wire
|
|
Wire Range
|
AWG24# – AWG16#
|
|
Cutting Length
|
65 – 9999 mm (long wire conveyor belt required for lengths over 800 mm)
|
|
Cutting Accuracy
|
≤ 0.5 mm + cutting length × 0.5%
|
|
Crimping Capacity
|
Standard 2.0 T (cast ultra-quiet clutch terminal machine)
|
|
Power Supply
|
AC 220V 50/60 Hz 20A
|
|
Machine Dimensions
|
L1450 × W750 × H1860 mm
|
