Fully Automatic One-to-Multi-Wire Combined Crimping Machine with Heat Shrink Tube Insertion ZOKO-036F
| Model: | ZOKO-036F |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic One-to-Muliti-Wires Terminal Crimping ;Heat Shrink Tube Insertion |
Fully Automatic One-to-Multi-Wire Combined Crimping Machine with Heat Shrink Tube Insertion ZOKO-036F
(Wire Harness Processing Equipment)
Boost your wire harness production efficiency with the ZOKO-036F Fully Automatic One-to-Multi-Wire Combined Crimping Machine with Heat Shrink Tube Insertion. This advanced industrial solution is specifically engineered for high-precision manufacturing of Y-shaped multi-wire harnesses, delivering fully automatic processing of three wires into a reliable combined splice while simultaneously inserting and securing heat shrink tubing for superior insulation and protection.

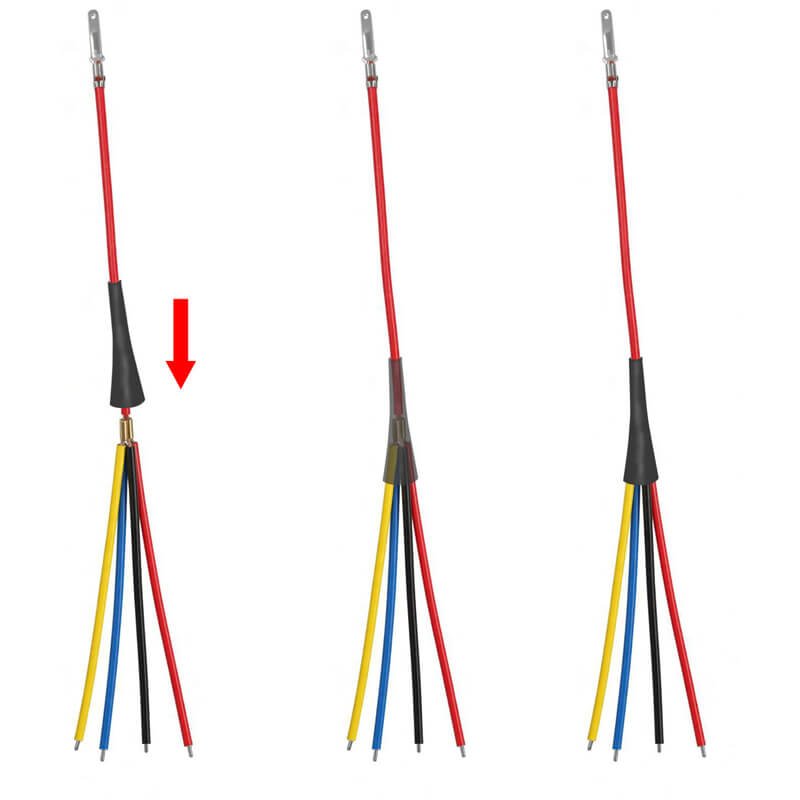

Ideal for automotive, electronics, appliance, and industrial control applications, the ZOKO-036F streamlines complex wire processing tasks that traditionally require multiple machines or manual labor. It automatically cuts, strips, crimps individual terminals on free ends, combines the opposite ends of three wires into a single joint using a line-buckle or splice terminal, and applies heat shrink tubing over the connection point—all in one continuous cycle. The result is consistent, high-quality “Y” type (one-to-two or one-to-three) branch wire harnesses ready for immediate use.
Key advantages include high throughput of up to 1200 pieces per hour (for lengths within 300 mm), precise handling of wires ranging from AWG24# to AWG16#, and flexible customization options. Need to combine more than three wires? The machine can be tailored to customer requirements for multi-wire combined crimping configurations, with corresponding adjustments to production speed.
Technical Specifications
|
Parameter
|
Specification
|
|---|---|
|
Model
|
ZOKO-036F
|
|
Capacity
|
1200 pcs/hour (within 300 mm length)
|
|
Function
|
Fully automatic three-wire combined crimping into Y-shaped harness with heat shrink tube insertion (customizable for additional wires)
|
|
Wire Range
|
AWG24# – AWG16#
|
|
Cutting Length
|
65 – 9999 mm (lengths over 800 mm require optional long-wire conveyor)
|
|
Power Supply
|
AC220V 50/60Hz 20A
|
|
Cutting Accuracy
|
Within 0.5 mm + cutting length × 0.5%
|
|
Crimping Force
|
Standard 2 TON (cast ultra-quiet clutch 2.0T terminal machine)
|
|
Machine Dimensions
|
L1450 × W750 × H1860 mm
|
Built with durable components and an ultra-quiet crimping system, the ZOKO-036F ensures stable, low-noise operation and excellent repeatability. Its modular design supports easy integration into existing production lines and quick changeovers for different terminal types and wire specifications.
Whether you are producing branched power cables, sensor harnesses, or custom multi-conductor assemblies, the Fully Automatic One-to-Multi-Wire Combined Crimping Machine with Heat Shrink Tube Insertion ZOKO-036F delivers the precision, speed, and reliability modern manufacturers demand. Contact us today for customization details, demonstrations, or a tailored quotation to optimize your wire harness manufacturing process.
