Fully Automatic Multi-Wire Housing Insertion, Twisting and Tinning Terminal Machine
| Model: | ZOKO- |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic Terminal Crimping and Housing Insertion; |
Fully Automatic Multi-Wire Housing Insertion, Twisting and Tinning Terminal Machine
Function Features:
1. Fully automatic simultaneous processing of 1–8 wires, including cutting, stripping, terminal crimping and housing insertion on one end, and wire twisting + tinning on the other end (wire tail).

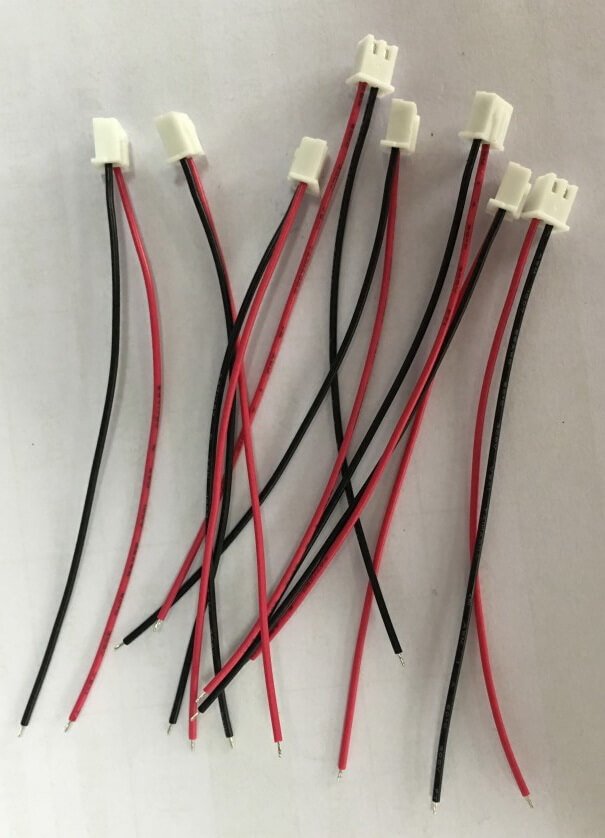

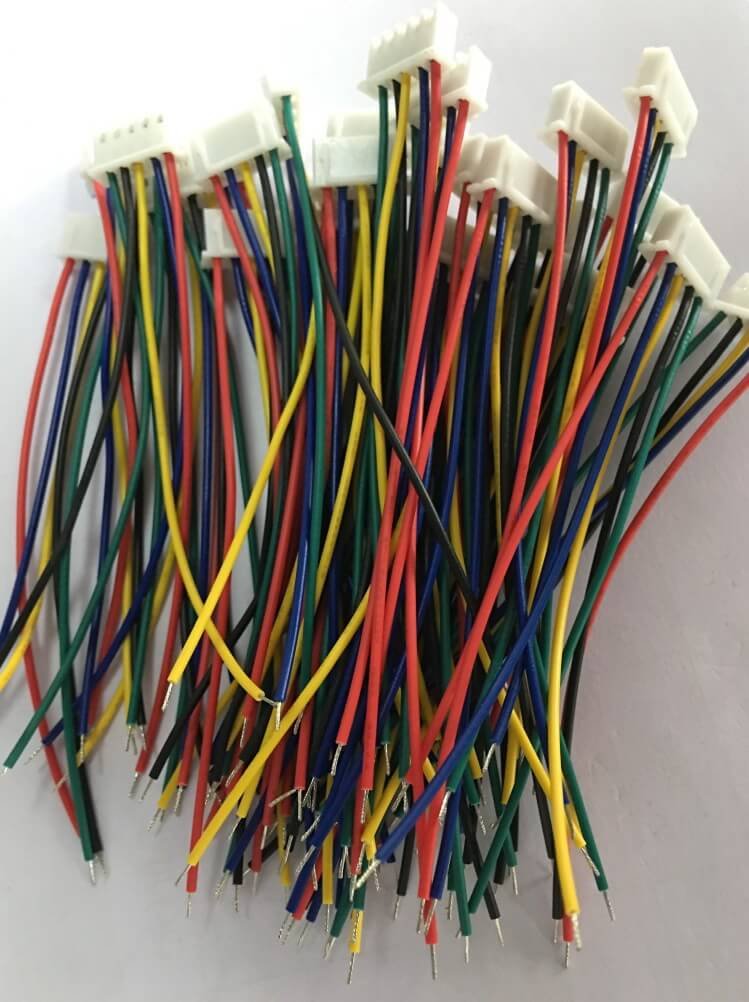

Capacity:
4 seconds per cyclem,
5-pin housing: 900 sets/hour
2-pin housing: 1600 sets/hour
KINGXOUL wire winding and tying machine, Help Your Business Reduce Labor Cost and Increase Production Efficiency. Create More Value For You!
Fully Automatic Housing Insertion and Terminal Crimping Machine working video:
| Detailed Specifications of Fully Automatic Multi-Wire Housing Insertion, Twisting and Tinning Terminal Machine
: |
|
| Model: | ZOKO- |
| Name: | Fully Automatic Multi-Wire Housing Insertion, Twisting and Tinning Terminal Machine |
| Applicable Wire: | AWG28# – AWG12# |
| Speed: | 4 seconds per cycle (when 5-pin housing: 900 sets/hour, 2-pin housing: 1600 sets/hour ) |
| Cutting Length: | 35–1500 mm |
| Functions: | Fully automatic simultaneous processing of 1–8 wires, including cutting, stripping, terminal crimping and housing insertion on one end, and wire twisting + tinning on the other end (wire tail). |
| Crimping: | 2T cast iron ultra-quiet crimping machine |
| Detection: | Wire presence detection, wire knot detection, terminal presence detection, air pressure detection, terminal crimping force detection |
| Compressed Air: | 0.5 MPa |
| Power Supply: | AC220V 50/60Hz 20A |
| Dimensions: | 1330 × 900 × 1860 (mm) |
| Weight: | 680 KG |
This Automatic Terminal Crimping and Housing Insertion Machine fully automates the wire harness assembly process—cutting, stripping, terminal crimping, housing insertion, and sleeve insertion—greatly improving production efficiency and consistency while reducing manual labor.
| xx model 1 | xx model 2 | xx model 3 | |
|---|---|---|---|
| Cutting to length: | |||
| Full stripping: | |||
| Half stripping: | |||
| Multi-step stripping: | |||
| Center stripping / Intermediate slitting: |
|||
| Multi-conductor cable processing: | |||
| Core processing: | |||
| Double sheath cable processing: | |||
| Flat cable processing: | |||
| Cutting pulled strands / Precision cut: |
|||
| Hot stamp marking: | |||
| Inkjet marking: | |||
| Coiling / Binding | |||
| Sequence processing | |||
| Wire feed (Roller/Belt) | |||
| Wire deposit system | |||
| Pulling / Dereeling prefeeder | |||
| Batch separation | |||
| Twisting / Tinning | |||
| Seal insertion | |||
| Split cycle for closed barrels | |||
| Double crimping | |||
| Sleeve insertion | |||
| Double sheath / Coaxial and triaxial cables |
|||
| Ferrule crimping | |||
| MIL crimping | |||
