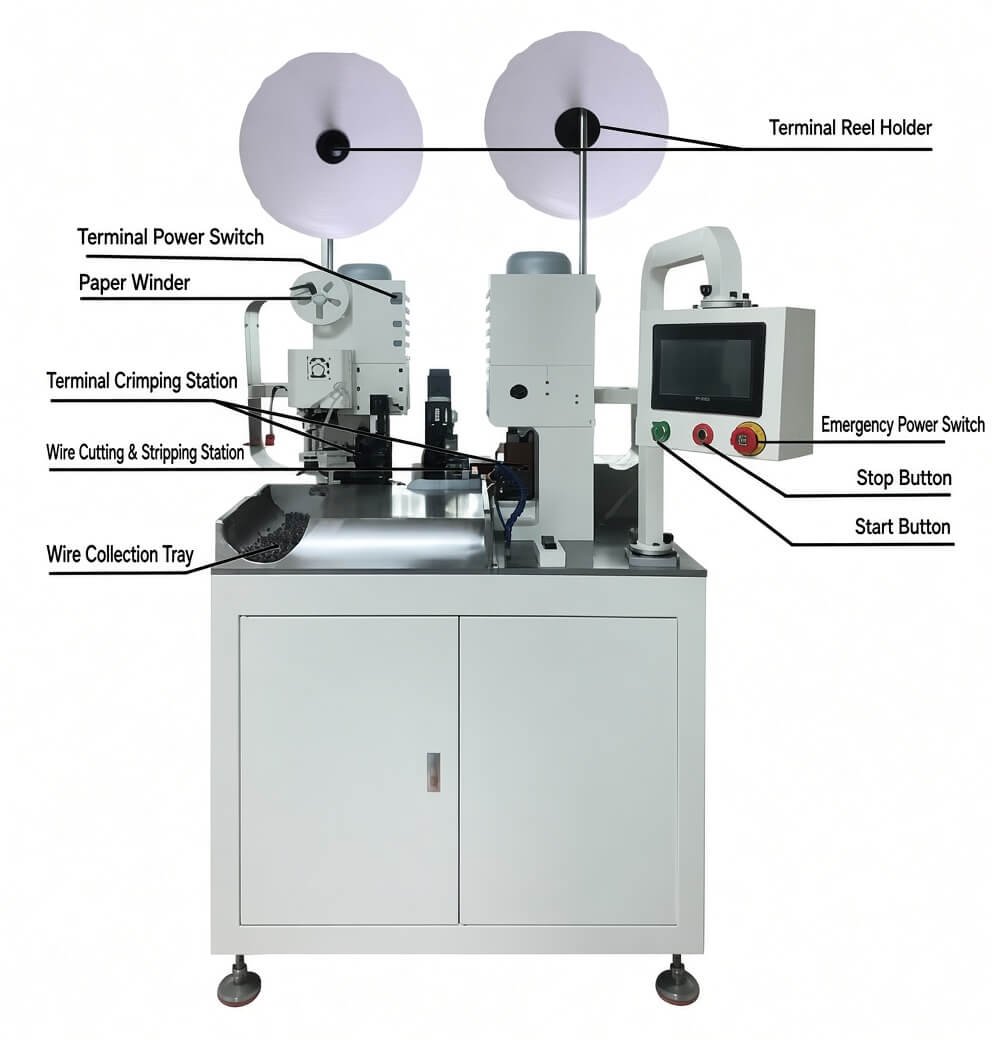

High-Precision Fully Automatic Servo Double-End Terminal Crimping Machine ZOKO-028H-A
| Model: | ZOKO-028H-A |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic Dual Ends Terminal Crimping ; |
Fully Automatic Servo Double-End Terminal Crimping Machine ZOKO-028H-A
(Wire Harness Processing Equipment)
The Fully Automatic Servo Double-End Terminal Crimping Machine is a high-precision, high-efficiency wire processing solution designed for modern wire harness production. This advanced fully automatic servo double-end terminal crimping machine combines wire cutting, stripping, and dual-end terminal crimping in one continuous cycle. Equipped with a reliable servo drive system, it delivers stable performance, excellent accuracy, and long service life, making it the ideal choice for manufacturers seeking a professional automatic double-end terminal crimping machine.
Fully Automatic Servo Dual-End Terminal Crimping Machine
Key Technical Features of the Fully Automatic Servo Double-End Terminal Crimping Machine
-

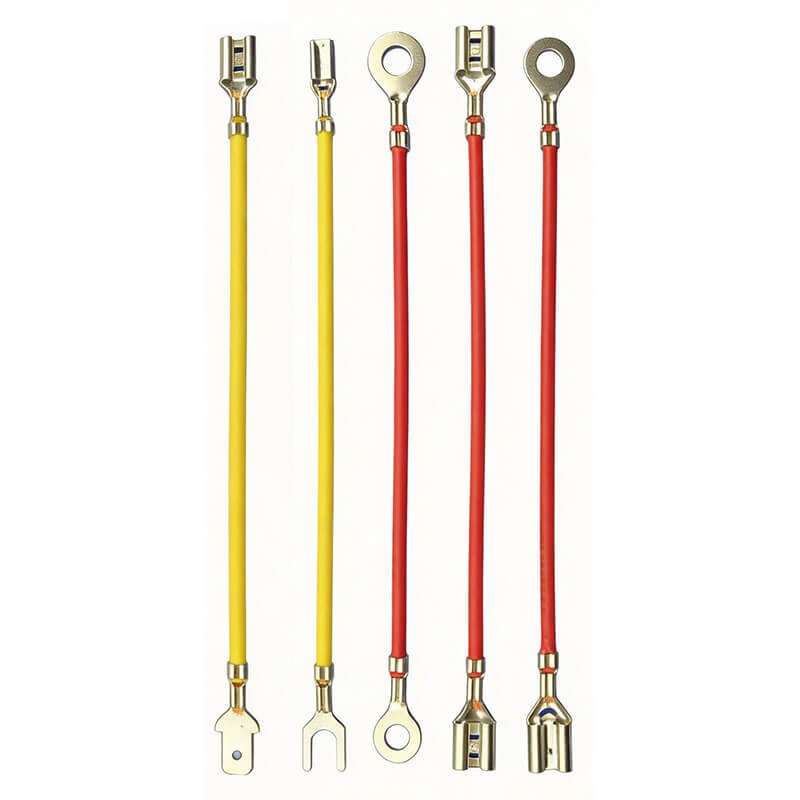

- One end can crimp flag terminals with locking buckle while the other end crimps standard terminals, offering excellent flexibility for different wire harness requirements.
- Compatible with both horizontal cassette molds and vertical cassette molds. Quick mold changeover allows fast switching between different terminal types.
- All critical parameters including wire cutting length, stripping length, and insulation depth are set via a user-friendly touch screen with numerical control. The interface is precise, intuitive, and easy to learn, enabling operators to master the machine quickly.
Product Parameters – Fully Automatic Servo Double-End Terminal Crimping Machine
|
Item
|
Specification
|
|---|---|
|
Model
|
ZOKO-028F
|
|
Machine Dimensions
|
835 × 765 × 1680 mm
|
|
Maximum Output
|
3600 pcs/hour (wire length = 150 mm)
|
|
Applicable Wire
|
AWG 1007 #18 – #30
|
|
Cutting Length
|
35 mm – 3000 mm (conveyor belt required above 800 mm)
|
|
Cutting Accuracy
|
±0.5 mm + cutting length × 0.2%
|
|
Stripping Length
|
Right side < 10 mm, Left side < 15 mm (longer stripping available on request)
|
|
Crimping Force
|
Standard 2 Ton ultra-quiet terminal press, supports imported cassette applicators
|
|
Power
|
2.5 kW
|
|
Power Supply
|
AC 220V 50Hz Single Phase
|
|
Air Pressure
|
0.5 MPa (5 kgf/cm²)
|
|
Weight
|
380 kg
|
|
Control System
|
MSP430E microcontroller, 165 NA/MIPS, 5 μs standby wake-up, high-speed calculation
|
|
Detection Functions
|
1. Poor terminal crimping 2. Terminal presence detection 3. Wire shortage / knotting detection 4. Machine abnormality alarm 5. Total quantity reached
|
Optional AccessoriesCassette molds and blades
- Vertical wire feeder
- Horizontal wire pay-off stand
- Long-wire conveyor belt
- Crimp force monitoring system
The Fully Automatic Servo Double-End Terminal Crimping Machine is widely used in automotive wire harness, home appliance, electronics, and industrial control industries. Its combination of servo precision, dual-end flexibility, and intelligent detection makes it one of the most reliable fully automatic double-end terminal crimping machines on the market.
