Fully Automatic 90° Flag Terminal Crimping Machine ZOKO-028F
| Model: | ZOKO-028H-A |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic Dual Ends Terminal Crimping ; 90° Flag Terminal Crimping |
Fully Automatic 90° Flag Terminal Crimping Machine ZOKO-028F
(Wire Harness Processing Equipment)
The Automatic 90° Flag Terminal Crimping Machine (Model ZOKO-028F) is a high-performance fully automatic double-end terminal crimping machine specially designed for 187 series flag terminals with locking function. This advanced servo-driven machine can simultaneously process one end with a 90° flag terminal (right-angle flag terminal) and the other end with a standard terminal, delivering exceptional efficiency for wire harness production.
Key Features of the Automatic 90° Flag Terminal Crimping Machine

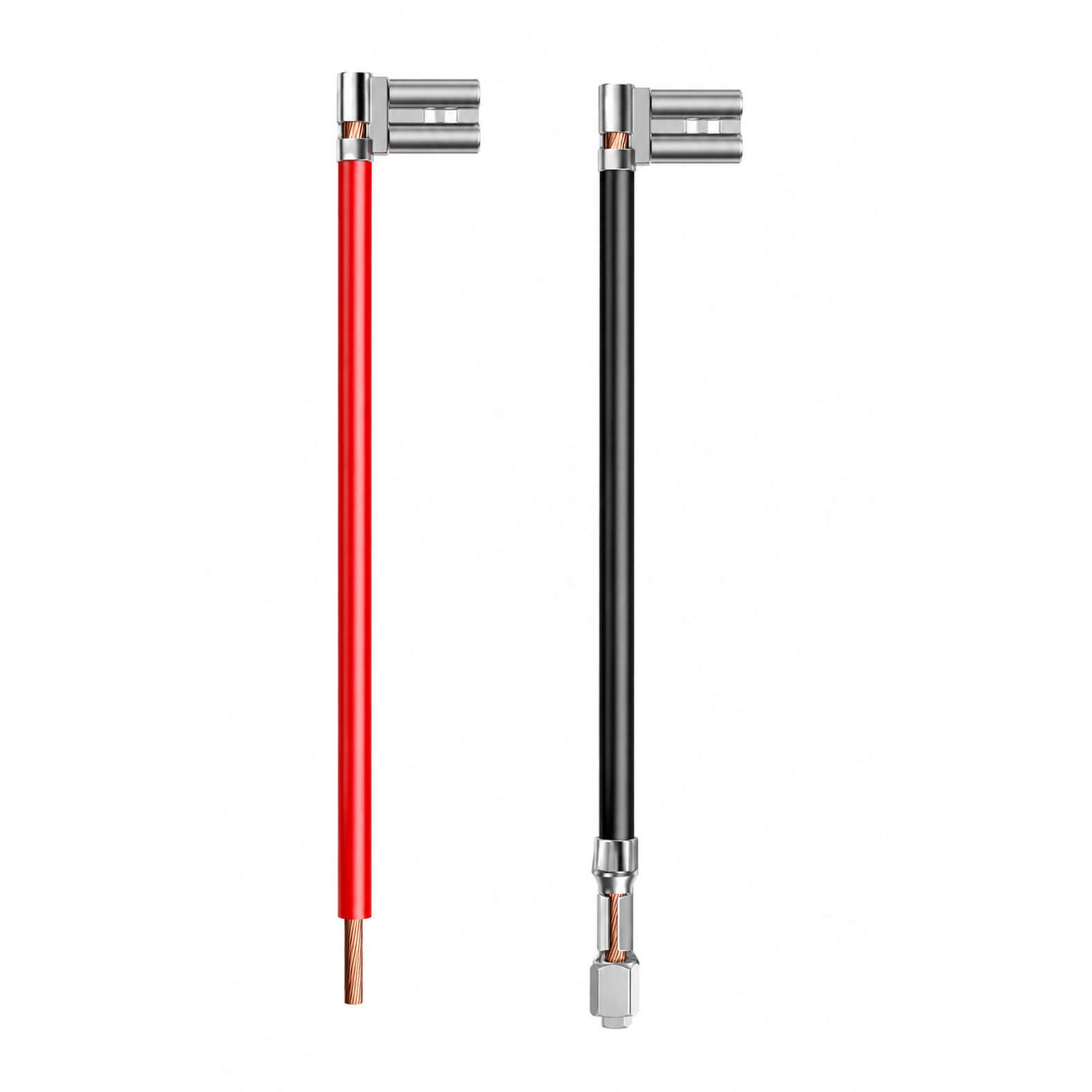

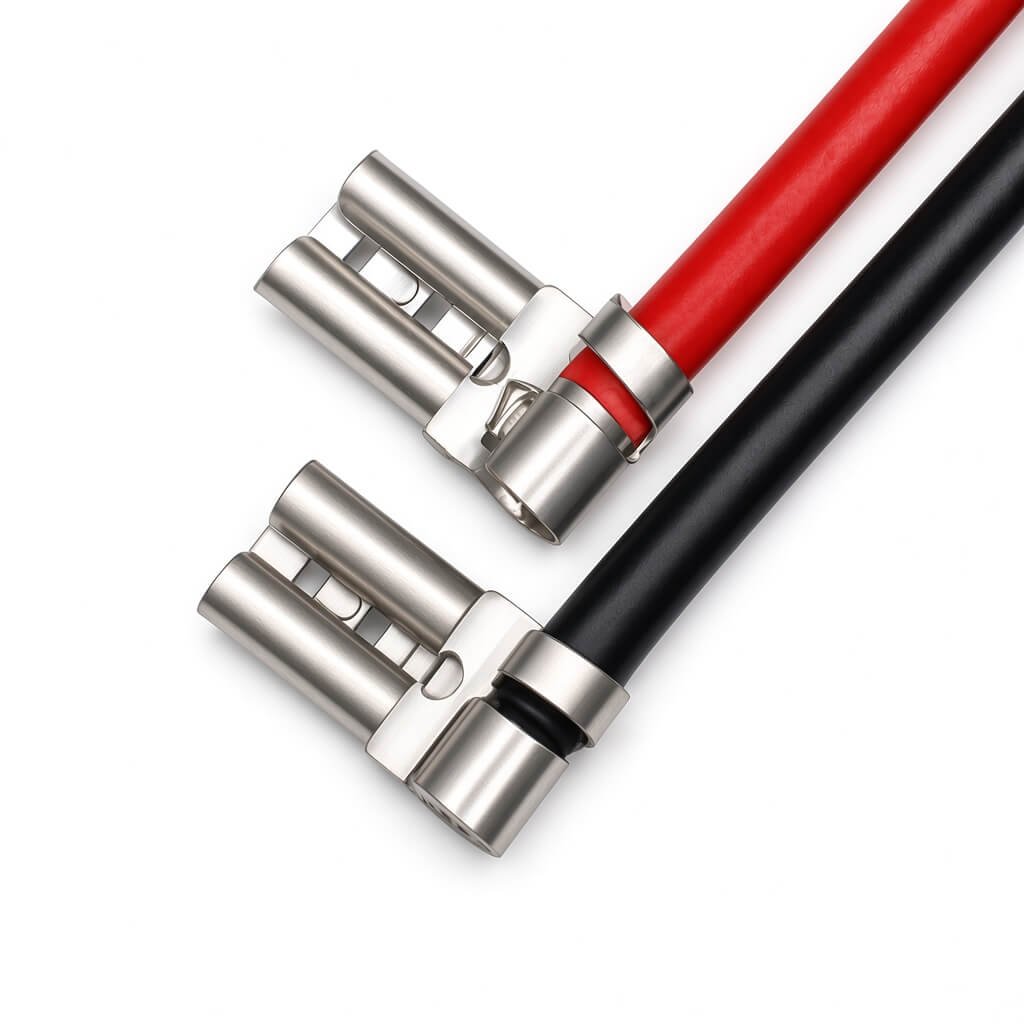

- One end reliably crimps 90° flag terminals with locking tab, while the opposite end handles ordinary terminals.
- Compatible with both horizontal and vertical cassette molds, allowing quick and easy mold changeover.
- All critical parameters including wire cutting length, stripping length, and insulation crimping depth are controlled via an intuitive touch-screen CNC system. High precision, easy to learn, and simple to operate.
Product Parameters – Fully Automatic Servo Double-End Terminal Crimping Machine
|
Item
|
Specification
|
|---|---|
|
Model
|
ZOKO-028F
|
|
Machine Dimensions
|
835 × 765 × 1680 mm
|
|
Maximum Capacity
|
3600 pcs/hour (wire length = 150 mm)
|
|
Applicable Wire
|
AWG 1007 #18 – #30
|
|
Cutting Length
|
35 mm – 3000 mm (conveyor belt required for lengths over 800 mm)
|
|
Cutting Accuracy
|
±0.5 mm + (cutting length × 0.2%)
|
|
Stripping Length
|
Right side < 10 mm, Left side < 15 mm (customizable for longer stripping)
|
|
Crimping Capacity
|
Standard 2 Ton ultra-quiet terminal press, compatible with imported cassette molds
|
|
Power
|
2.5 kW
|
|
Power Supply
|
AC 220V 50Hz Single Phase
|
|
Compressed Air
|
0.5 MPa (5 kgf/cm²)
|
|
Weight
|
380 kg
|
|
Control System
|
MSP430E microcontroller, 165 NA/MIPS operating mode, 5 μs standby wake-up, high-speed computing
|
Detection Functions
- Poor terminal crimping detection
- Terminal presence detection
- Wire shortage or knotting detection
- Machine abnormality detection
- Total production quantity reached
Optional Accessories
- Cassette molds and blades
- Vertical wire feeder
- Horizontal wire payoff stand
- Long-wire conveyor belt
- Pressure sensing system
The Automatic 90° Flag Terminal Crimping Machine combines high speed, precision, and flexibility, making it the ideal solution for manufacturers requiring efficient double-end processing of 90° flag terminals and standard terminals. Contact us today for more details or a customized quotation.
