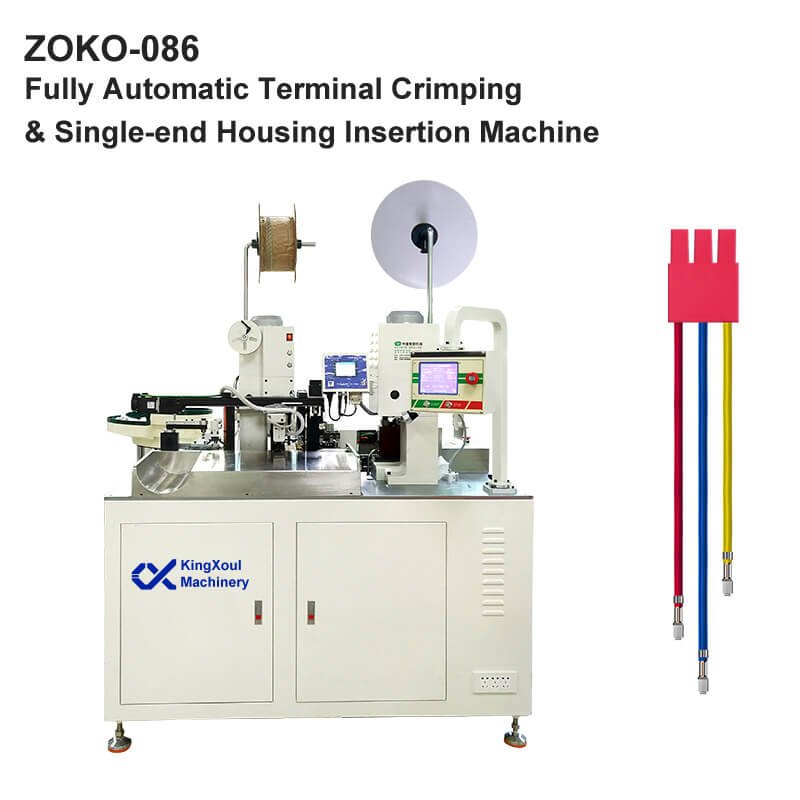

Fully Automatic Terminal Crimping Machine & Single-end Housing Insertion Machine
| Model: | ZOKO-086 |
|---|---|
| Brand: | KingXoul |
| Function: | Wire Cut, Strip & Crimp; Automatic Terminal Crimping and Housing Insertion; |
Fully Automatic Single-end Housing Insertion Terminal Machine – ZOKO-086
(Also known as Automatic Terminal Crimping and Housing Insertion Machine / Fully Automatic Wire Cutting Stripping Crimping and Housing Insertion Machine)
KINGXOUL wire winding and tying machine, Help Your Business Reduce Labor Cost and Increase Production Efficiency. Create More Value For You!
Product Name:
Fully Automatic Single-end Housing Insertion Terminal Machine (Wire Harness Processing Equipment)
Model: ZOKO-086
Function:
Wire or cable winding and tying machine
Key Features:
- Automatically processes up to 2–8 different colored wires with wire cutting, stripping, double-end terminal crimping, and single-end housing insertion.
- Supports both single-row and double-row housing insertion, capable of handling housings with up to 20 pin positions.
- Optional CCD vision inspection system and pressure management system can be added to enhance product reliability and quality control.
Fully Automatic Housing Insertion and Terminal Crimping Machine working video:
| Item | Specification |
| Applicable Wire | AWG28# – AWG12# |
| Maximum Speed | 2 m/s |
| Cutting Length | 80 – 99,999 mm |
| Cutting Accuracy | ≤500 mm: ±0.5 mm + 0.2% of set length >1000 mm: ±1 mm + 0.2% of set length |
| Stripping Length | 1 – 20 mm |
| Main Functions | Cutting, stripping, double-end terminal crimping, single-end housing insertion, and single-end sleeve/sheath insertion for 1–8 colored wires |
| Detection Systems | Wire presence detection, wire knot detection, terminal presence detection, air pressure detection, terminal crimping pressure detection, terminal appearance visual inspection |
| Power Supply | AC 220V 50/60Hz 20A |
| Dimensions | L1800 × W800 × H1860 mm |
| Weight | 720 kg |
| Crimping Capacity | Standard 2 Ton (ultra-quiet clutch-type 2.0T cast terminal applicator) |
| Compressed Air | 0.5 MPa (5 kgf/cm²) |
This Automatic Terminal Crimping and Housing Insertion Machine fully automates the wire harness assembly process—cutting, stripping, terminal crimping, housing insertion, and sleeve insertion—greatly improving production efficiency and consistency while reducing manual labor.
