EVT-708 Fully Automatic 8-Wire Crimping Housing Insertion Twisting & Tinning Machine

Model: EVT-708 (Wire Harness Processing Equipment)

The EVT-708 Fully Automatic 8-Wire Crimping Housing Insertion Machine is a high-efficiency wire harness processing solution designed for multi-wire applications. It features 8-wire simultaneous feeding and performs terminal crimping combined with housing/connector insertion on one end, while the opposite end carries out precise wire twisting and tinning.

This model is optimized for short wires and fine-pitch harnesses. It supports single-end tinning with twisting to ensure consistent outer diameter after tinning. Capable of processing down to 32 AWG wires with lengths ≥22 mm and pitch ≥1.0 mm, the EVT-708 delivers stable quality and high productivity for electronics and consumer wire harness manufacturing.

Key Functions of the EVT-708 Fully Automatic 8-Wire Crimping Housing Insertion Machine

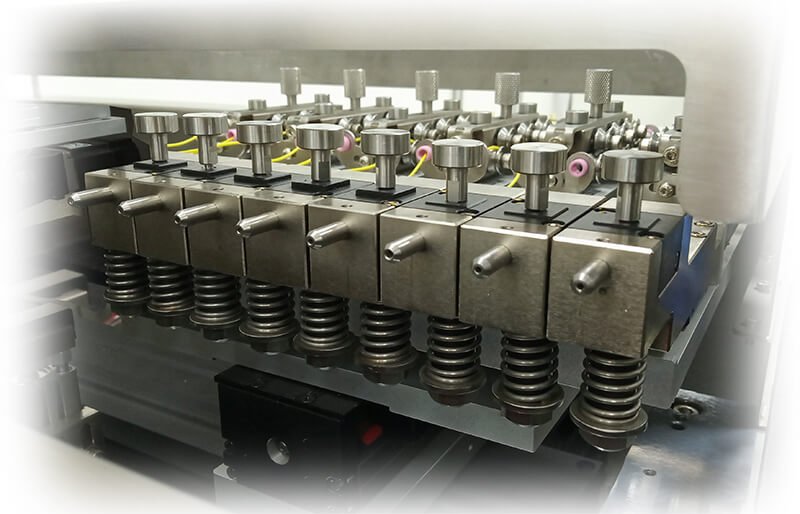

• 8-Wire Simultaneous Feeding – Equipped with 8-axis wire feeder for higher throughput compared to 4-wire models.
• Single-End Tinning + Housing Insertion – One end performs terminal crimping and housing insertion; the other end completes twisting and tinning.
• Optimized for Short & Fine Wires – Supports wires as fine as 32 AWG, length ≥22 mm, pitch ≥1.0 mm. Twisting ensures consistent OD after tinning.
• High-Precision Servo System – 1.5T servo terminal machine + dual servo trolley transfer with excellent positioning accuracy.
• Flexible Assembly Modes – Supports both sequential assembly and cross assembly.
• Comprehensive Quality Inspection – Includes copper wire touch detection, copper core end-face vision, terminal appearance vision, presence detection, assembly confirmation, stripping check, wire presence, and low air pressure detection.
• Wide Processing Range – Wire length from 30 mm to 1000 mm (long wires require conveyor belt).
