EVT-704 Fully Automatic Multi-Wire Crimping, Housing Insertion, Twisting & Tinning Machine
| Model: | EVT-704 |
|---|---|
| Brand: | KingXoul |
| Function: | Multi-Wire Cut, Strip & Crimp; Housing / Socket/ Connector Insertion; Twisting & Tinning . |
Multi-Wire Series Comparison
Choose the right model based on the number of wires you need to process simultaneously.
Fully Automatic Multi-Wire Terminal Crimping Housing Insertion Twisting Tinning Machine | EVT-704
Model: EVT-704 (Wire Harness Processing Equipment)
The EVT-704 Fully Automatic Multi-Wire Crimping, Housing Insertion, Twisting & Tinning Machine is a high-efficiency wire harness processing solution designed for multi-wire applications. It automatically feeds multiple wires, performs terminal crimping and housing/connector insertion on one end, while twisting the conductor and tinning the other end in a continuous workflow.
Ideal for short wires and fine-pitch harnesses, the machine supports single-end tinning with twisting to ensure consistent tinning diameter. Key processes include precise wire feeding, stripping, sequential or cross assembly into housings, and high-accuracy tinning. Equipped with servo-driven systems and multiple visual inspection functions, it delivers stable quality and high productivity for electronics, automotive, and consumer wire harness manufacturing.
Key Functions of the EVT-704 Fully Automatic Multi-Wire Terminal Crimping Housing Insertion Twisting Tinning Machine

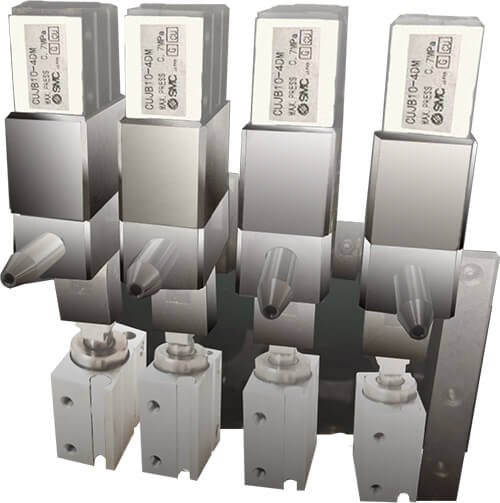

- Fully Automatic Multi-Wire Processing – Simultaneous multi-wire feeding and sequential processing for higher throughput.
- One-End Crimping + Housing Insertion – Precise terminal crimping and connector/housing insertion with sequential or cross assembly modes.
- Other-End Twisting & Tinning – Twisting ensures stable conductor diameter before tinning; ideal for short wires (≥22 mm) and fine pitches (≥1.0 mm).
- High-Precision Servo System – Servo terminal machine (1.5T) + dual servo trolley transfer for excellent positioning accuracy.
- Comprehensive Quality Inspection – Copper core end-face vision, terminal appearance vision, presence detection, assembly confirmation, stripping check, wire presence, and air pressure monitoring.
- Flexible & Efficient – Supports AWG 18–28 wires, 30–1000 mm lengths, vibratory bowl feeding, and modular changeovers.
- Compact & Reliable – Six working stations + dual trolleys, 4-axis wire feeder, stable performance for continuous production.
Technical Specifications of EVT-704 Fully Automatic Multi-Wire Terminal Crimping Housing Insertion Twisting Tinning Machine
|
Parameter
|
Specification
|
|---|---|
|
Model
|
EVT-704
|
|
Footprint Dimensions & Weight
|
2300 mm × 700 mm, approx. 650 kg
|
|
Applicable Wire Size
|
AWG #18–#22 or AWG #24–#28
|
|
Terminal Feeding Method
|
Vibratory bowl feeder
|
|
Wire Feeding Method
|
Wheel feeding
|
|
Stripping Method
|
Forward & reverse lead screw
|
|
Stripping Length
|
Side 1: 1.0–8 mm; Side 2: 1.0–10 mm
|
|
Crimping Capacity
|
1.5T servo terminal machine
|
|
Applicable Terminals
|
JAM, OPT, JST, Molex side-feed terminals (JST & Molex require replacement of lock mold base plate and punch)
|
|
Production Capacity
|
Twisting + Tinning: 2.6 sec/piece (when cut length ≤ 50 mm)
|
|
Transfer Method
|
Servo motor trolley operation (2 trolley clamps), high positioning accuracy
|
|
Assembly Method
|
Sequential assembly / Cross assembly
|
|
Wire Processing Length
|
30–1000 mm (long wires require conveyor belt)
|
|
Housing Dimensions
|
≤ 58 W × 20 D × 15 H mm
|
|
Quality Inspection Functions
|
Copper core end-face visual inspection, terminal appearance visual inspection, terminal presence detection, assembly position detection, stripping port detection, wire presence detection, low air pressure detection, etc.
|
|
Working Stations
|
Six stations + two sets of trolleys
|
|
Air Pressure Requirement
|
0.5–0.7 MPa
|
|
Power Supply
|
220 V
|
|
Wire Feeder Axes
|
4 axes
|
